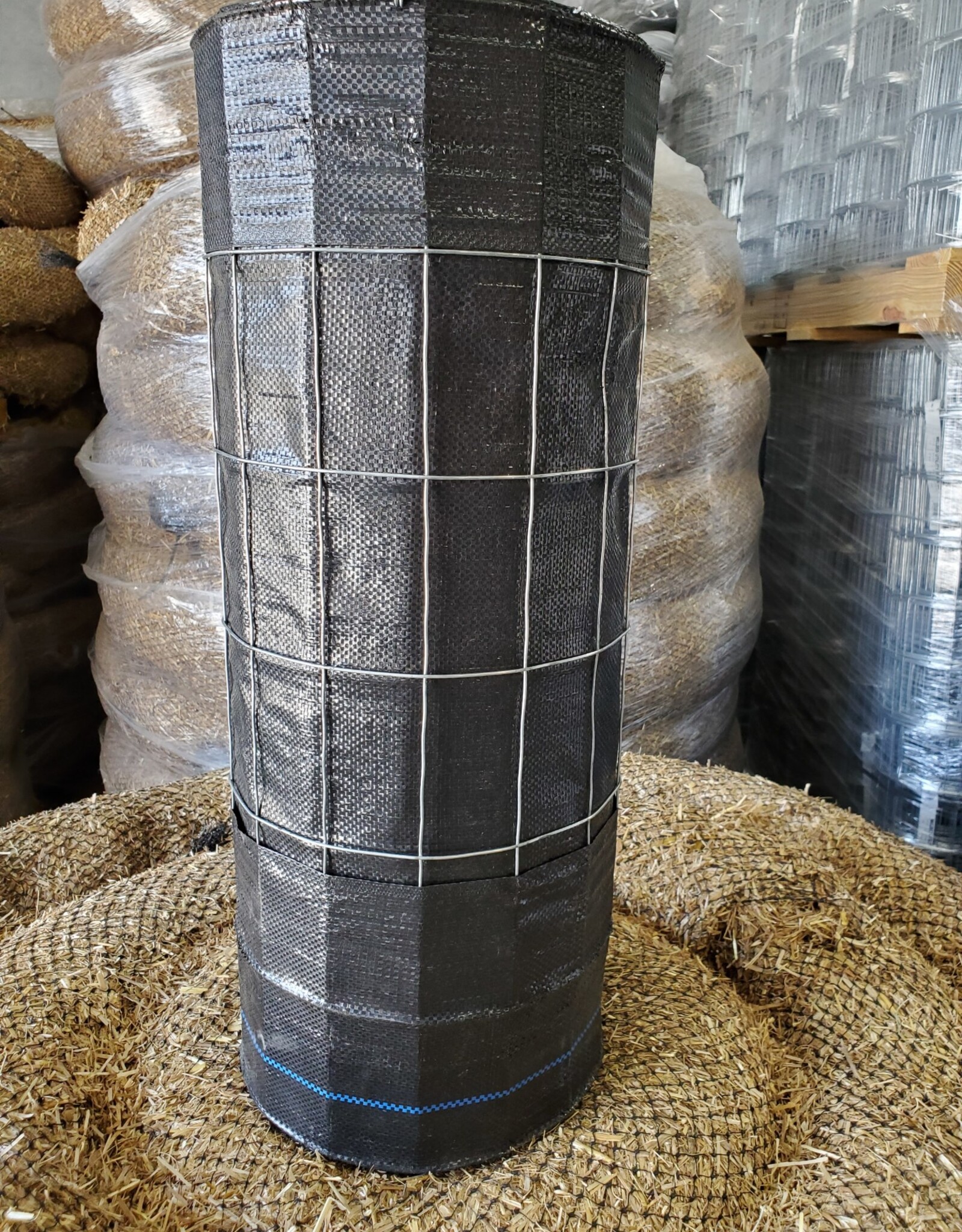

Wire Backed Silt Fence, 2ft. x 100 ft. Length w/ 36 in. Fabric

$56.95
Article number: 37427826
Availability: In stock (442)
Delivery time: 1 - 3 business days

Purpose & Description:

Silt Fence is a temporary sediment barrier made of porous polypropylene filter fabric and is designed to restrict the loss of loose soil and retain sediment in place from disturbed land, such as a construction site. Silt Fences are often installed as perimeter controls and typically used in combination with sediment basins or sediment traps, as well as erosion controls.

Silt Fence allows water to filter efficiently into the ecosystem until the activities disturbing the land (i.e., land grading and earthwork) are sufficiently completed, to allow re-vegetation and permanent soil stabilization. The silt fence fabric ponds sediment-laden storm water runoff, causing sediment to be retained by the settling processes. It is held up by wooden or metal posts driven into the ground, so it’s inexpensive and relatively easy to remove. Construction silt fences function in a manner like a sedimentation basin in which water is allowed to filter through the fabric while suspended silt particles settle to the ground.

Keeping the soil on a construction site, rather than letting it be washed off into natural water bodies (e.g., streams, rivers, ponds, lakes, estuaries) prevents the degradation of aquatic habitats and siltation of harbor channels. Preventing soil wash off onto roads, which readily transports it to storm sewers, avoids having sewers clogged with sediment. The cost of installing silt fence on a watershed’s construction site is considerably less than the costs associated with losing aquatic species, dredging navigation channels, and cleaning sediment out of municipal storm sewers.

A single 100-foot run of a construction silt fence may hold 50 tons of sediment in place. Most construction sites today do have silt fences, but many do not work effectively because they are not well designed, installed, or maintained. We supply the wooden stakes and metal t-posts and ties to secure the wire back silt fence in place.

Wire Backed Silt Fence for sediment control consists of a high-quality woven geotextile with ultraviolet stabilizers to resist degradation caused by exposure to sunlight. Wire Backed Silt Fence has filter fabric attached to wire mesh for added support. The most common silt fence fabric is 77-gram and 100 gram, and the wire is usually 14 gauge or 12.5-gauge wire with a 2"x 4" or 4"x 4" wire size opening.



Wire Backed Silt Fence Features:

• 36" fabric
• A more robust silt fence
• Able to retain more silt before it needs to be cleaned
• Made of woven polypropylene material and non-biodegradable
• Resistant to commonly encountered soil chemicals, mildew and insects
• Silt fence plow row
• Required in some jurisdictions


Available Sizes:

Item No. Size Wire Thickness & Spacing Material Qty. Per Pallet
37427826

2' x 100'

14 gauge, 2x4 spacing 36" 77-gram (contractor grade)    32
37427833
2' x 100' 12.5 gauge, 2x4 spacing



36" 100-gram -TXDOT



   18

37427831

2' x 100' 14 gauge, 4x4 spacing 36" 77-gram (contractor grade)    60

All sizes can be purchased individually or by the pallet








2x4 wire mesh opening


 4x4 wire mesh opening




Applications:

Adjacent to creeks, lakes and streams

Around storm water drainage ditches and culverts

Bottom of highly erodible slopes

√  Curbside silt control at construction sites

√  Floodways

√  Drainage ditches

√  Perimeter of construction sites

√  Swale drains

√  Spillways

√  Project with pollution earth

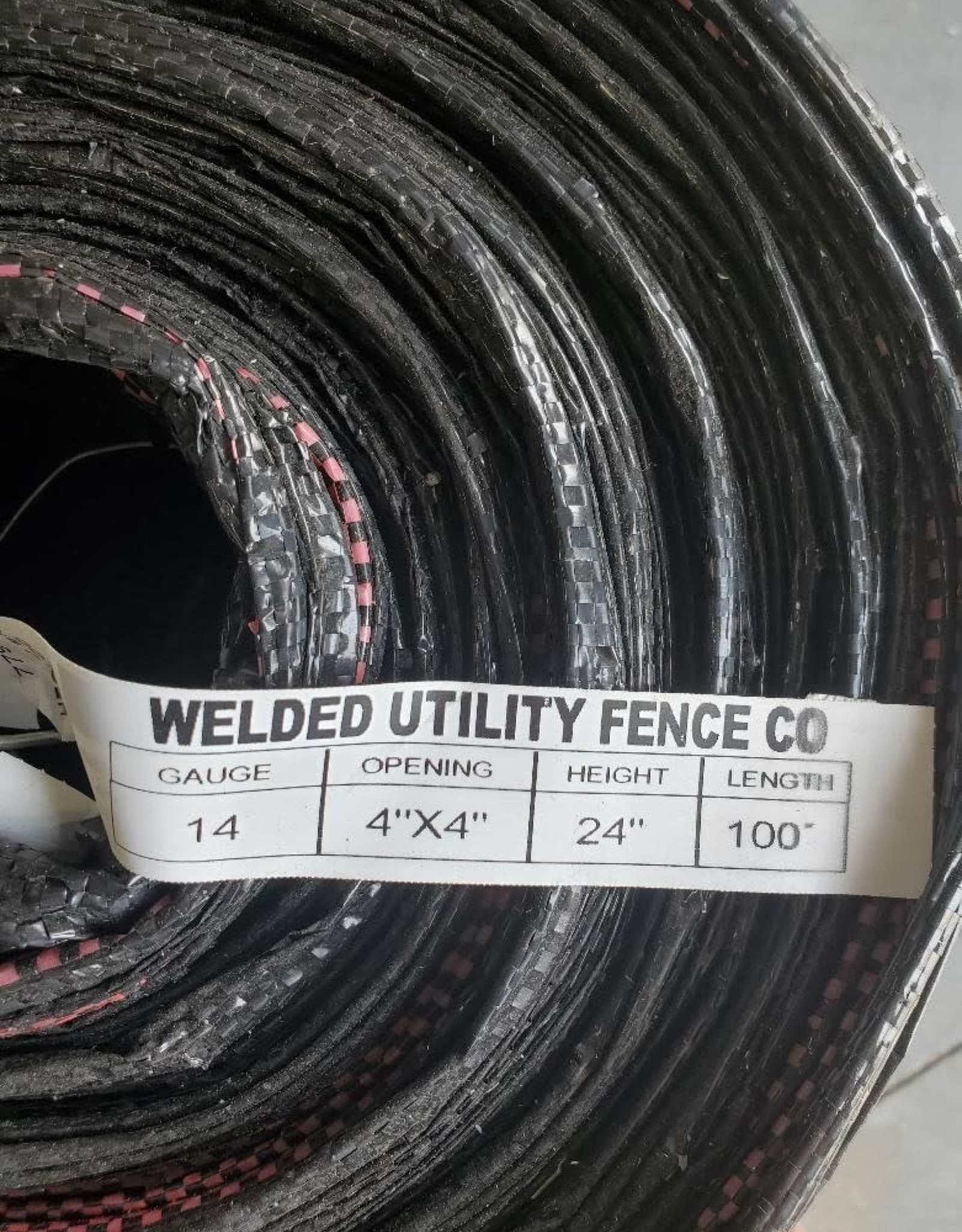

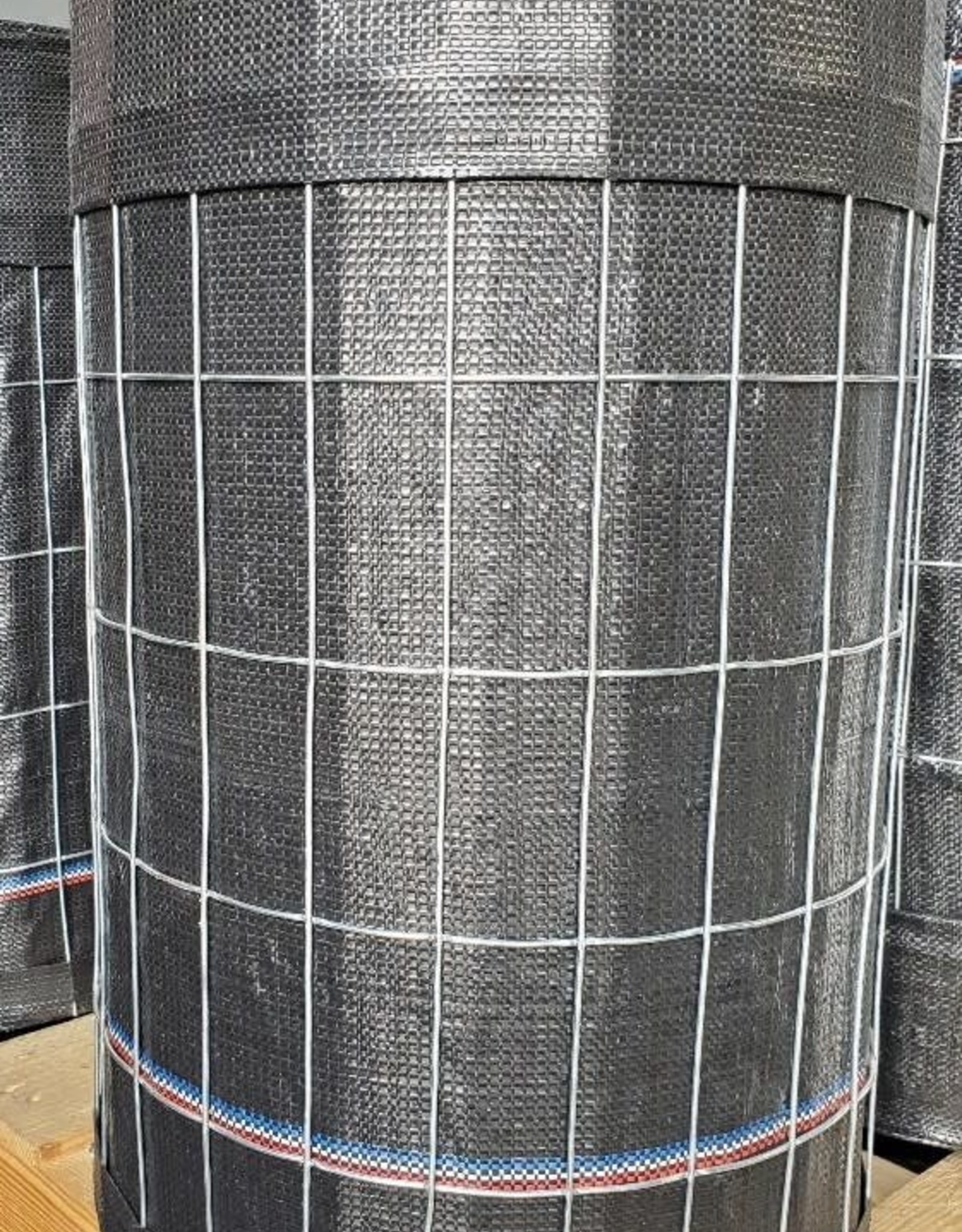

picture 1 - shown on top has (4x4) wire mesh openings w/14-ga. wire and 36" 77-gr. material

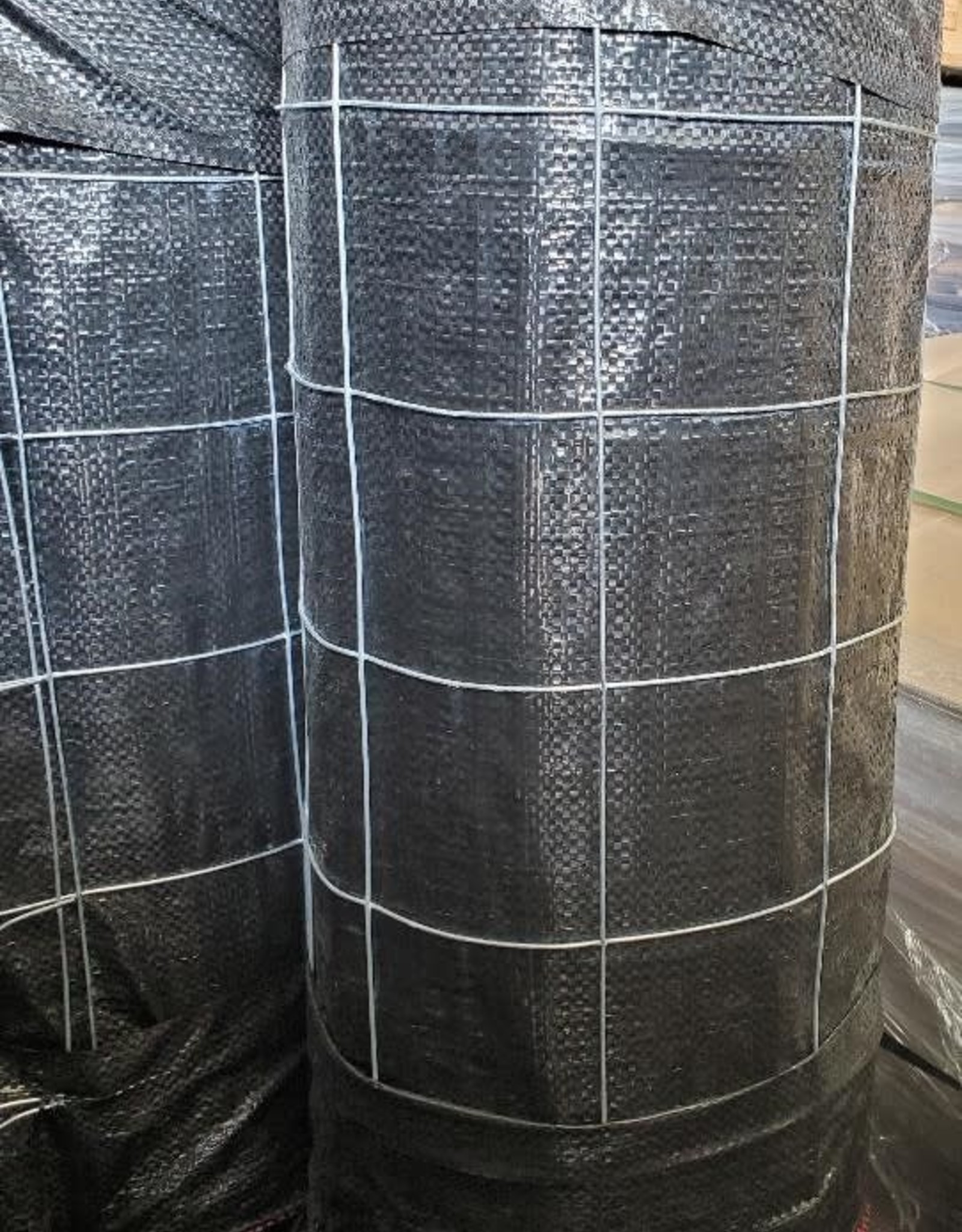

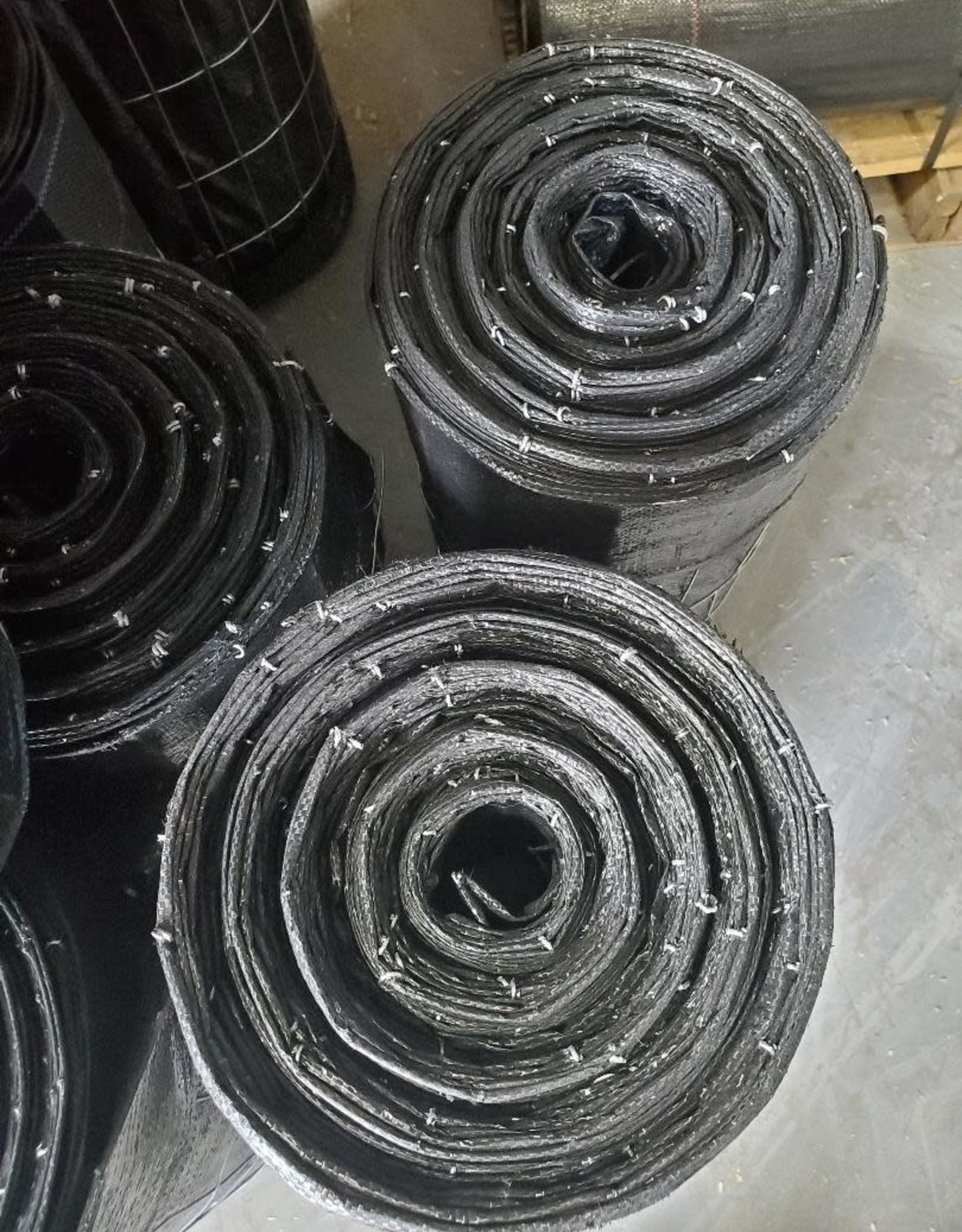

picture 2 - middle picture has (2x4) wire mesh openings w/14-ga. wire and 36" 77-gr. material
picture 3 - bottom picture has (2x4) wire mesh openings w/12-ga. wire and 36" 100-gr. material


Refer to other related products at the bottom of this page (sold separately)

Wire backed silt fence



Other related products sold separately

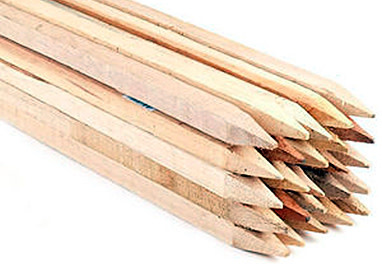

Wood Stakes  T-Posts

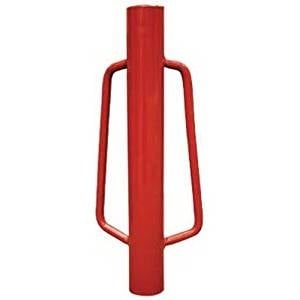

T-Post Driver

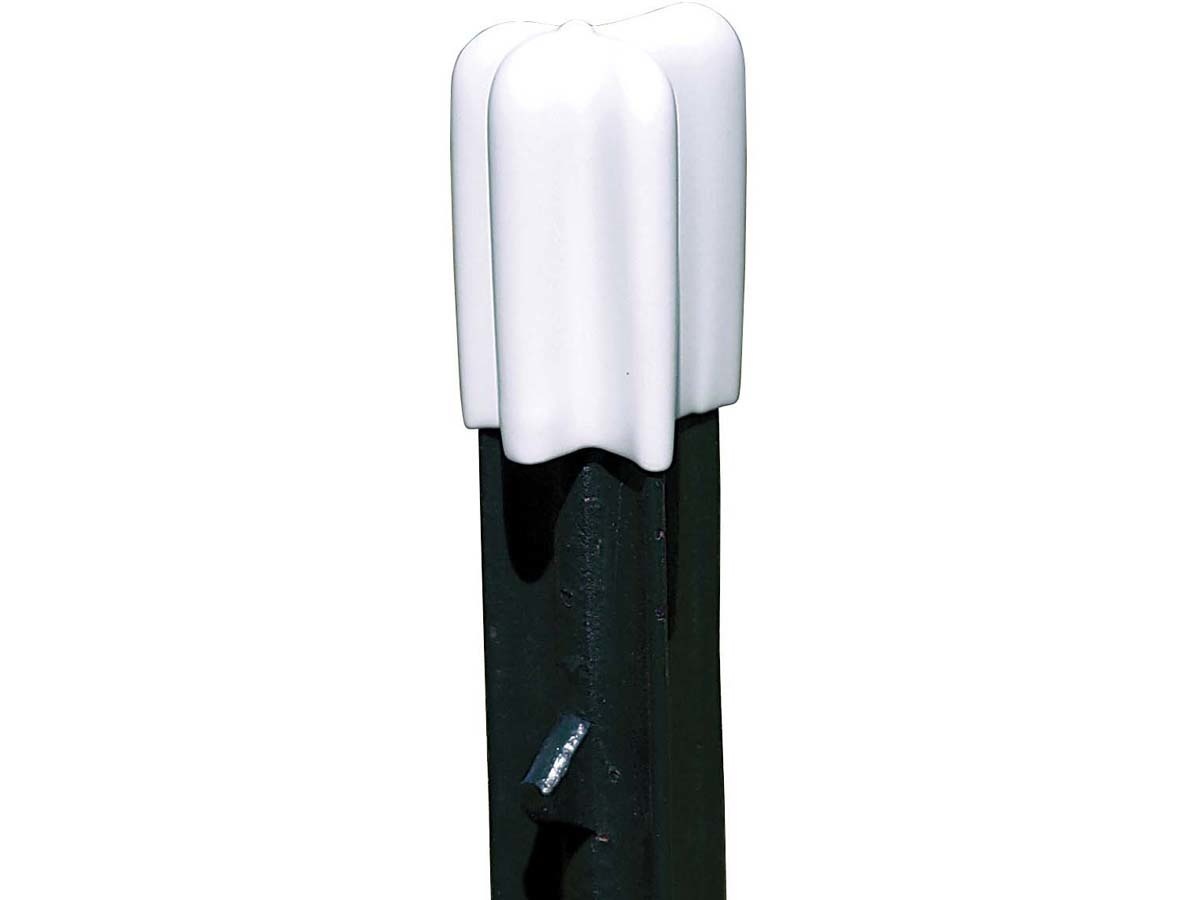

 Safe-T-Post Caps

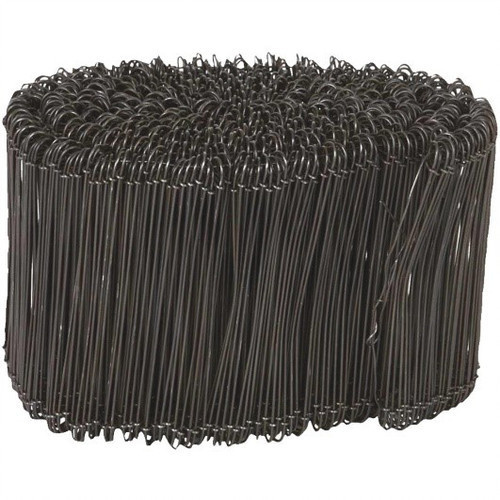

Rebar Ties

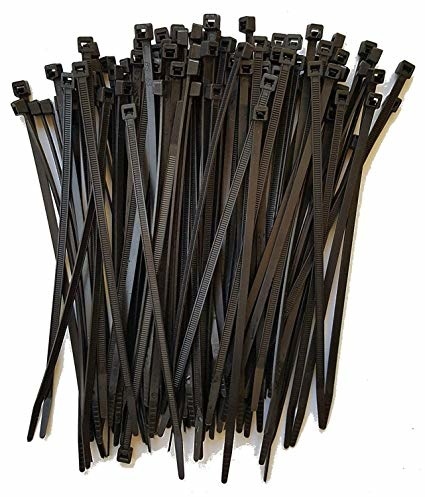

 Zip Ties



70 Gram Fabric with 14-gauge 2 in. x 4 in. Wire Back Silt Fence Spec Sheet

70 Gram Fabric with14 gauge 4 in. x 4 in Wire Back Silt Fence Spec Sheet

100 Gram-Silt Fence Fabric Specification Sheet

12.5 Gauge Silt Fence Wire Spec Sheet
