TenCate Mirafi 1160N Non Woven Geotextile Fabric, SZ. 15' x 150'

$669.65
Article number: 37611398
Availability: Ships same day or next day
Delivery time: Please contact us for delivery timeframe



N-Series Nonwoven Polypropylene Geotextiles



Product Description:

TenCate Mirafi® N-Series nonwoven polypropylene geotextiles are staple fibers used for soil separation and drainage. They combine high durability, along with excellent physical and hydraulic properties in addition to high tensile strengths. TenCate Mirafi® N-Series geotextiles are produced from polypropylene staple fibers and combine high water flow rates and durability while providing excellent soil retention. TenCate Mirafi® N-Series geotextiles are used in a wide variety of applications including subsurface drainage and roadway separation applications.



Mirafi N-Series Geotextile Benefits:

♦ Easily conform to the ground or trench surface, for trouble free installation.

♦ With stand severe installation stresses with high puncture and burst resistance.

♦ High permeability properties provide high water flow rates while providing excellent filtration and soil retention .

♦ Chemically stable in a wide range of aggressive environments.

♦ Provide economical solutions to many civil engineering applications, including a cost-effective alternative to graded aggregate filters.



Mirafi® 1160N

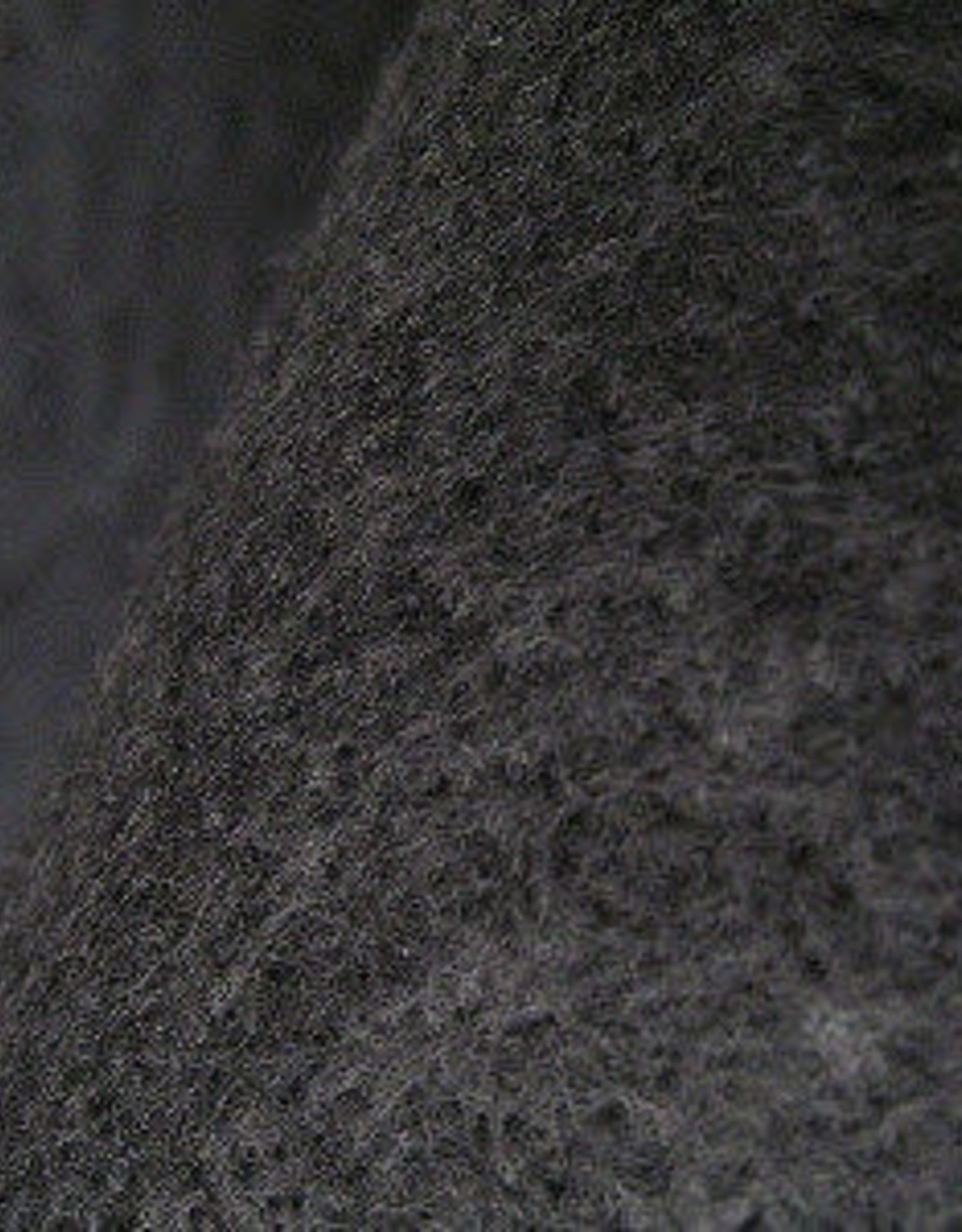

Mirafi ®1160N is a needle punched nonwoven geotextile composed of polypropylene fibers, which are formed into a stable network such that the fibers retain their relative position. Mirafi®1160N geotextiles are insusceptible to biological degradation and resists naturally encountered chemicals, alkalis, and acids.



Applications:

Mirafi N-Series Nonwovens are used in a wide variety of applications including:

Separation
Drainage
Filtration



System Solutions Include:

Athletic fields
Barriers
Highways
Landfill Drainage and Filtration
Subsurface Drainage
Under airfields
Water Containment
Water Protection
Waste Management



Specifications:

Item # 37611398
Model: 1160N-15X150
Brand: Mirafi - TenCate
Size: 15' x 150'
Square Feet / Roll: 2,250 -16 oz. fabric



Mirafi 1160N Product Specification Sheet



Other Custom Sizes of Mirafi N-Series Geotextiles- Special Order Only

135N –   3' x 360'  (1,080 sq-ft.) - 3 oz.
140NL – 12.5' x 360'  (4,500 sq-ft.) - 3.8 oz.
140NL – 15' x 360'  (5,400 sq-ft.) - 3.8 oz.
140NC – 12.5' x 360'  (4,500 sq-ft.) - 4 oz.
140NC – 15' x 360'  (5,400 sq-ft.) - 4 oz.
140N –   12.5' x 360'  (4,500 sq-ft.) - 4.5 oz.
140N –   15' x 360'  (5,400 sq-ft.) - 4.5 oz.
160N –  15' x 300'  (4,500 sq-ft.) - 6 oz.
170N -   15' x 300'  (4,500 sq-ft.) - 7 oz.
180N –  15' x 300'  (4,500 sq-ft.) - 8 oz.
1100N – 15' x 300'  (4,500 sq-ft.) - 10 oz.
1120N – 15' x 300'  (4,500 sq-ft.) - 12 oz.
1160N – 15' x 150'  (2,250 sq-ft.) - 16 oz.
